Description

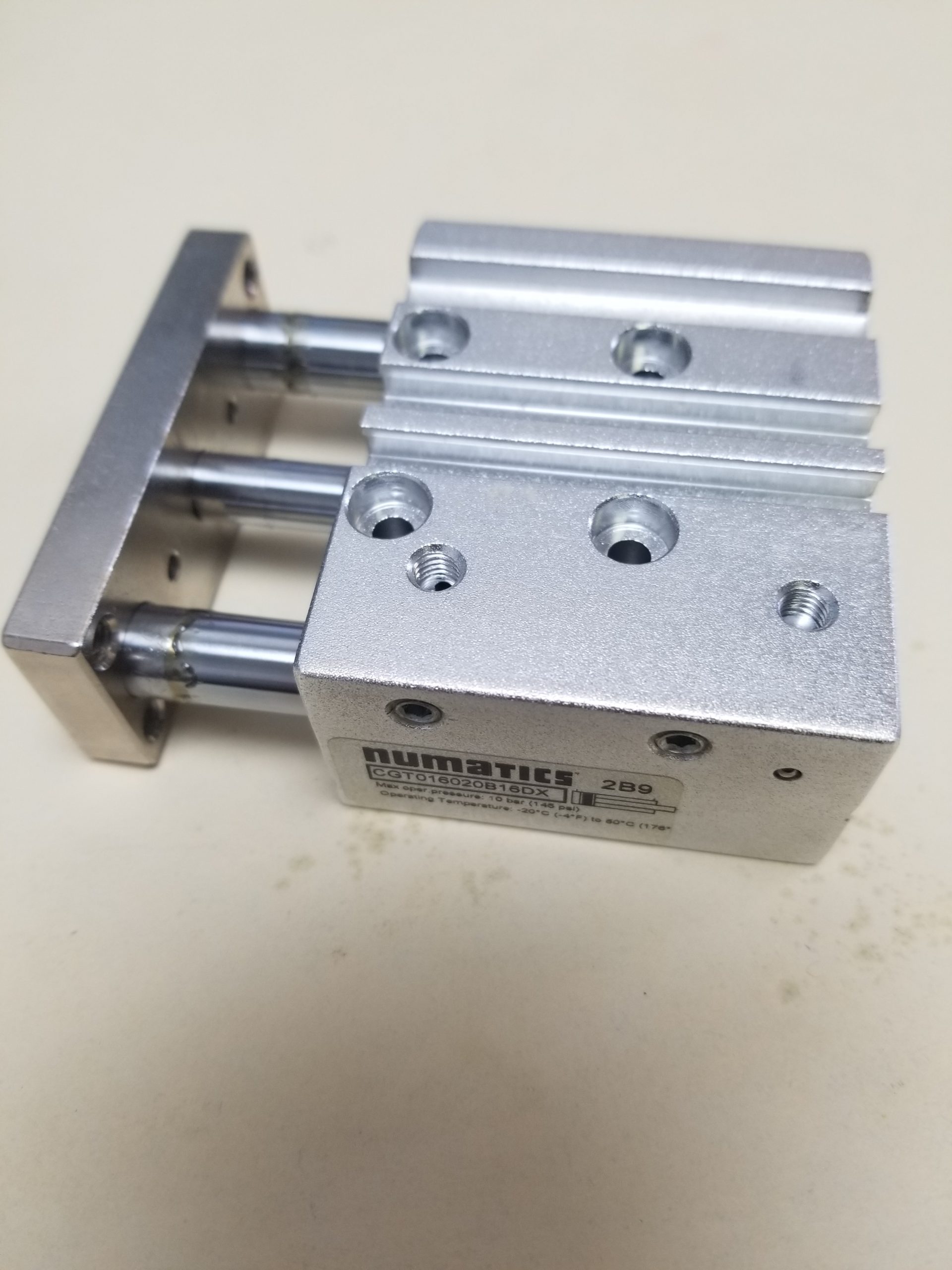

Double-acting pneumatic compact linear guide slide actuator with bronze bushings – Numatics (Guided line – CGT series – metric) – 16mm bore (B16mm) – 20mm stroke length (S20mm) – M5 threaded pneumatic ports x 2 – 4 x M5 threaded mounting holes (tooling plate) – Actuation force 120N (6bar relative working pressure; extend) / 91N (6bar relative working pressure; retract) – Rated for 145psi (max. operating pressure) – Length 62mm (tooling plate) – Width (tooling plate) 30mm – PUR seals / nickel-plated steel tooling plate / anodized aluminium body / hardened steel guide shaft – with tooling plate + magnetic piston + built-in magnet + included cyl.
